Brand Name : | Assmann WSW Components |
Model Number : | A 08-LC-TT |
Certification : | RoHS |
Price : | negotiate |
Payment Terms : | T/T |
Supply Ability : | 10000 |
Delivery Time : | 5-10 work days |
Mfr | Assmann WSW Components |
Series | - |
Product Status | Active |

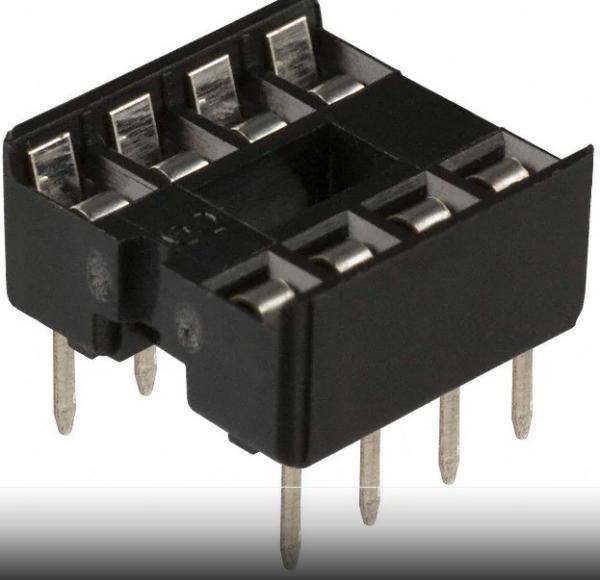

Type | DIP, 0.3" (7.62mm) Row Spacing |
Number of Positions or Pins (Grid) | 8 (2 x 4) |
Pitch - Mating | 0.100" (2.54mm) |
Contact Finish - Mating | Tin |
Contact Finish Thickness - Mating | - |
Contact Material - Mating | Phosphor Bronze |
Mounting Type | Through Hole |
Features | Open Frame |
Termination | Solder |
Pitch - Post | 0.100" (2.54mm) |
Contact Finish - Post | Tin |
Contact Finish Thickness - Post | - |
Contact Material - Post | Phosphor Bronze |
Housing Material | Polybutylene Terephthalate (PBT) |
Operating Temperature | -55°C ~ 85°C |
Termination Post Length | 0.124" (3.15mm) |
Material Flammability Rating | UL94 V-0 |
Current Rating (Amps) | 1 A |
Contact Resistance | 30mOhm |
![]() |
